Aircon Leaking Water Repair in Singapore

A Leaking Aircon Is an Emergency in Singapore

In a tropical climate where indoor humidity regularly exceeds 85 percent, every split-type aircon in your HDB flat, condo or landed home is constantly producing water. That is the whole point: the system pulls moisture out of the air so you feel cooler. When everything works, the water flows through a small drain pipe to an external discharge point and you never see it. When something blocks, cracks or freezes, that same water ends up on your floor, your TV console, your bed or your downstairs neighbour’s ceiling.

CoolX Aircon has been clearing water leaks across Singapore since 2016. Founder Kok Wai Keong brought 15 years of industry experience into the business on its first day, and leaks are one of the five job categories our team sees every week. Over the 2,400+ projects we have completed across HDB estates in Tampines and Punggol, condos in Jurong East and Woodlands, and commercial units in the CBD, a clear pattern has emerged: about four out of every five leak calls are a blocked condensate drain line. The remaining one-in-five is something more subtle that other providers tend to miss.

Understand the Drainage Path First

Every split-type aircon in Singapore follows the same water path:

1. Warm, humid room air passes over a cold evaporator coil
2. Moisture in the air condenses onto the coil fins, exactly like droplets on a cold glass
3. Condensate runs down the fins into a drain pan beneath the coil
4. From the drain pan, a small-bore drain pipe carries water to an approved discharge point

That pipe is typically 15 to 18 millimetres in diameter. It does not take much biofilm, dust or algae to partially block it. Once the flow rate of incoming water exceeds the flow rate through the pipe, the drain pan overflows and water starts leaking into your room.

The Five Causes of Aircon Water Leaks We Diagnose

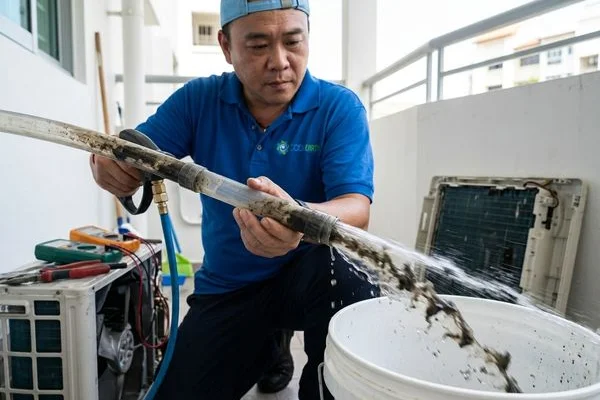

Cause 1: Blocked Condensate Drain Line

The most common leak source, by a wide margin. Singapore’s year-round heat and humidity are ideal conditions for the algae and bacteria that form the sticky “jelly” biofilm inside drain lines. Over 6 to 12 months, this biofilm narrows the pipe diameter until the system cannot keep up with incoming condensate.

Our fix: We flush the drain line from both ends with pressurised water and verify free flow. For severe cases we apply a mild enzyme-based cleaner that dissolves organic growth without damaging copper or plastic components. If the line clogs again within 3 months, the underlying cause is biofilm inside the fan coil unit, and we move up to a full chemical wash to clear the source.

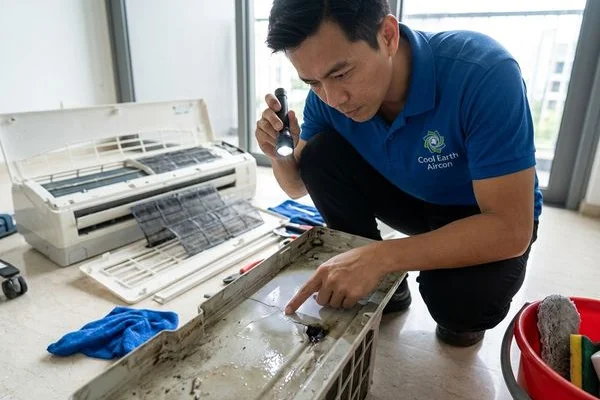

Cause 2: Cracked or Damaged Drain Pan

Drain pans are typically moulded plastic and sit beneath the evaporator coil. After years of thermal cycling, hairline cracks can develop along stress points. These cracks are often invisible to a casual inspection but allow water to seep through and drip from the wrong part of the unit.

Our fix: We inspect the pan thoroughly using a bright torch and moisture tracing. Depending on crack severity we either seal with specialist adhesive or replace the pan entirely. Replacement is common for units over 7 years old.

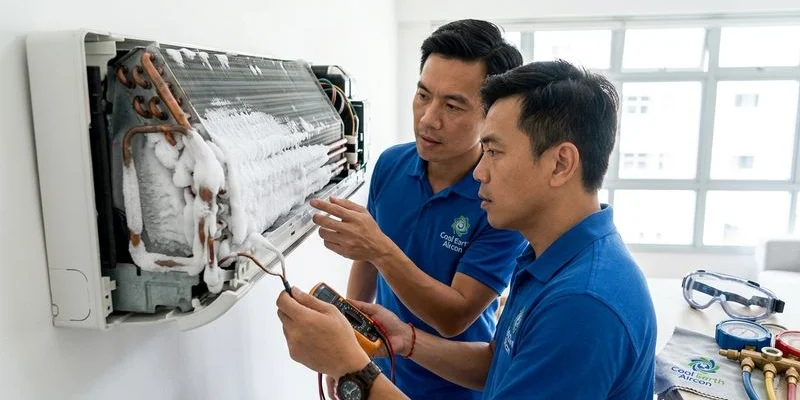

Cause 3: Frozen Evaporator Coil

When refrigerant is low, parts of the evaporator coil drop below freezing and ice forms on the surface. When the system cycles off, the ice melts rapidly, producing more condensate than the drain pan is designed to handle. The symptom is intermittent leaking: dry during running, heavy drip when the unit stops.

Our fix: We measure refrigerant pressure with calibrated gauges, locate any leaks, and top up the refrigerant to factory specification. Once the coil runs above freezing again, normal drainage resumes. This is why having NEA certified refrigerant handlers on a leak job matters.

Cause 4: Deteriorated Piping Insulation

The copper pipes carrying cold refrigerant between indoor and outdoor units are wrapped in closed-cell foam insulation. When that insulation deteriorates, gets damaged during renovation, or was inadequately applied at installation, condensation forms directly on the exposed cold pipe surface. The dripping looks like a unit leak but is actually a piping problem.

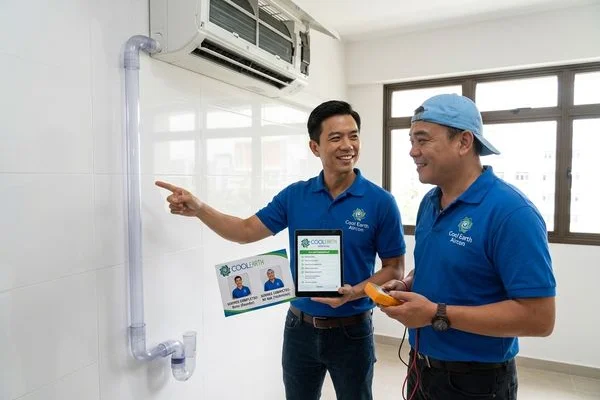

Our fix: We inspect every visible piping run and replace any deteriorated insulation with proper closed-cell foam wrap. In older HDB installations we often find the original insulation has crumbled where trunking runs through the kitchen or balcony.

Cause 5: Tilted or Mis-Mounted Indoor Unit

Indoor units must be mounted with a slight tilt towards the drain pipe end. If the unit has shifted over time, been bumped during renovation, or was installed perfectly level (which is actually incorrect), water pools at the wrong end of the drain pan and overflows from the side opposite the drain.

Our fix: We check the mounting angle with a spirit level and adjust the bracket if needed. This is usually the fastest fix of the five causes and permanently resolves the issue in one visit.

Why Your Previous Repair Did Not Hold

If this is the second or third time you are calling someone about the same leak, one of these is usually why:

• Symptom-level fix. The drain line was partly cleared but not fully flushed, so biofilm regrew quickly.
• Wrong cause diagnosed. The actual issue was a cracked pan or low gas, but only the drain was flushed.
• No preventive follow-up. Without quarterly maintenance, drain pipes in Singapore reclog within 3 to 6 months.
• Installation tilt never corrected. The fundamental mounting problem persists under every temporary fix.

Our approach is to check all five causes in one visit so the fix actually holds. This is more thorough than a drive-by drain flush but it is the reason our 90-day workmanship warranty almost never gets claimed.

Prevent Future Leaks at Home

Beyond fixing the immediate drip, these habits dramatically reduce your leak risk:

• Quarterly servicing. Drain line flushing is included in every standard service visit, which is why customers on a quarterly plan rarely call us for leaks.
• Annual chemical wash. Removes the biofilm source, not just the surface buildup.
• Avoid extended 16 degree running. Sustained very low set points promote ice formation on the evaporator coil.
• Keep the outdoor drain point clear. A blocked exterior discharge point can cause the internal pan to back up.
• Check piping insulation annually. Especially if you have had renovation work in the trunking area.

How We Compare

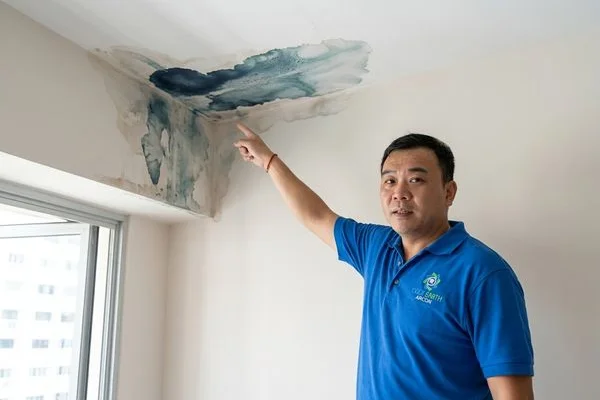

Stop the Drip Before It Becomes Damage

Do not let a small drip become a wall-staining, ceiling-warping, neighbour-disputing problem. WhatsApp CoolX Aircon at 9051 7637 or email hello@coolxaircon.com with a photo and a short video of the leak. Our technician will triage on chat, confirm pricing and aim for same-day dispatch across Tampines, Jurong East, Woodlands, Punggol, Bedok, Clementi, Ang Mo Kio and the rest of Singapore. Every leak repair carries our 90-day workmanship warranty.
